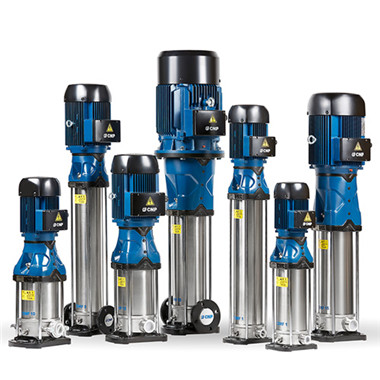

CDM，CDMF不锈钢轻型立式多级离心泵

参照欧洲标准自主研发的新一代、高效率非自吸立式多级离心泵。产品采用全新的工业设计，能效指标达到MEI≥0.7，叶轮导叶采用不锈钢板冲压焊接或不锈钢精密铸造制成，电机为全封闭，风冷式二极标准电机。

联系电话：4001-077-588

联系客服在线留言

产品详情

产品说明：

性能及优点：

高效节能

低噪音、环保

结构紧凑、外形美观

重量轻、使用维护方便

可靠性高

应用范围：

水厂过滤与输送，分区送水、主管增压、高层建筑二次供水

流程水系统、清洗系统、高压冲洗系统、消防系统

冷却、锅炉给水和冷凝系统、机床配套、酸和碱

空调系统

超滤系统、反渗透系统、蒸馏系统、分离器、游泳池

技术参数：

流量：0.5m³/h～240m³/h

扬程：4m～305m

功率：0.37kW～110kW

液体温度：-15℃～+120℃

频率：50Hz

型号		流量(m³/h)	扬程(m)	泵效率(%)	轴功率(kW)	转速(rpm)	叶轮外径(mm)	级数	介质温度（常温型）	介质温度（热水型）	电机功率(kW)	机械密封	重量(kg)
组名: 1
	CDM1-2	1	10.5	41	0.07	2900	74.5	2	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	23
	CDM1-3	1	16	41	0.1	2900	74.5	3	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	23
	CDM1-4	1	21.5	41	0.14	2900	74.5	4	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	24
	CDM1-5	1	27	41	0.17	2900	74.5	5	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	24
	CDM1-6	1	32.5	41	0.21	2900	74.5	6	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	25
	CDM1-7	1	39	41	0.25	2900	74.5	7	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	25
	CDM1-8	1	43.5	41	0.28	2900	74.5	8	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	27
	CDM1-9	1	49	41	0.32	2900	74.5	9	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	27
	CDM1-10	1	55	41	0.35	2900	74.5	10	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	28
	CDM1-11	1	61	41	0.39	2900	74.5	11	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	28
	CDM1-12	1	67	41	0.43	2900	74.5	12	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	31
	CDM1-13	1	73	41	0.47	2900	74.5	13	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	31
	CDM1-14	1	78	41	0.5	2900	74.5	14	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	28
	CDM1-15	1	84	41	0.54	2900	74.5	15	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	32
	CDM1-16	1	89	41	0.58	2900	74.5	16	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	31
	CDM1-17	1	95	41	0.61	2900	74.5	17	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	35
	CDM1-18	1	100	41	0.65	2900	74.5	18	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	32
	CDM1-19	1	106	41	0.68	2900	74.5	19	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	36
	CDM1-20	1	111	41	0.72	2900	74.5	20	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	33
	CDM1-21	1	117	41	0.75	2900	74.5	21	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	33
	CDM1-22	1	122	41	0.79	2900	74.5	22	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	37
	CDM1-23	1	128	41	0.83	2900	74.5	23	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	39
	CDM1-24	1	134	41	0.87	2900	74.5	24	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	39
	CDM1-25	1	139	41	0.9	2900	74.5	25	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	44
	CDM1-26	1	145	41	0.94	2900	74.5	26	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	40
	CDM1-27	1	150	41	0.97	2900	74.5	27	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	45
	CDM1-28	1	156	41	1.01	2900	74.5	28	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	41
	CDM1-29	1	161	41	1.04	2900	74.5	29	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	42
	CDM1-30	1	167	41	1.08	2900	74.5	30	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	46
	CDM1-31	1	175	41	1.13	2900	74.5	31	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	44
	CDM1-32	1	180	41	1.17	2900	74.5	32	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	49
	CDM1-33	1	186	41	1.2	2900	74.5	33	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	45
	CDM1-34	1	192	41	1.24	2900	74.5	34	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	50
	CDM1-35	1	197	41	1.28	2900	74.5	35	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	46
	CDM1-36	1	203	41	1.31	2900	74.5	36	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	51
	CDM1-37	1	209	41	1.35	2900	74.5	37	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	47
	CDM1-38	1	215	41	1.39	2900	74.5	38	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	51
	CDM1-39	1	220	41	1.42	2900	74.5	38	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	48
	CDM1-40	1	226	41	1.46	2900	74.5	40	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	52
组名: 2
	CDM3-2	3	11	58	0.16	2900	82	2	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	24
	CDM3-3	3	17	58	0.24	2900	82	3	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	24
	CDM3-4	3	23	58	0.32	2900	82	4	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	25
	CDM3-5	3	29	58	0.41	2900	82	5	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	26
	CDM3-6	3	35	58	0.49	2900	82	6	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	27
	CDM3-7	3	41	58	0.58	2900	82	7	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	30
	CDM3-8	3	47	58	0.66	2900	82	8	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	30
	CDM3-9	3	53	58	0.75	2900	82	9	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	32
	CDM3-10	3	59	58	0.83	2900	82	10	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	33
	CDM3-11	3	65	58	0.92	2900	82	11	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	33
	CDM3-12	3	71	58	1	2900	82	12	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	34
	CDM3-13	3	77	58	1.09	2900	82	13	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	39
	CDM3-14	3	83	58	1.17	2900	82	14	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	40
	CDM3-15	3	90	58	1.27	2900	82	15	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	40
	CDM3-16	3	96	58	1.35	2900	82	16	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	41
	CDM3-17	3	102	58	1.44	2900	82	17	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	38
	CDM3-18	3	108	58	1.52	2900	82	18	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	39
	CDM3-19	3	114	58	1.61	2900	82	19	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	44
	CDM3-20	3	120	58	1.69	2900	82	20	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	40
	CDM3-21	3	126	58	1.78	2900	82	21	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	45
	CDM3-22	3	132	58	1.86	2900	82	22	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	41
	CDM3-23	3	138	58	1.95	2900	82	23	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	46
	CDM3-24	3	144	58	2.03	2900	82	24	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	52
	CDM3-25	3	150	58	2.11	2900	82	25	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	57
	CDM3-26	3	156	58	2.2	2900	82	26	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	53
	CDM3-27	3	162	58	2.28	2900	82	27	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	58
	CDM3-28	3	168	58	2.37	2900	82	28	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	54
	CDM3-29	3	175	58	2.47	2900	82	29	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	58
	CDM3-30	3	181	58	2.42	2900	82	30	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	55
	CDM3-31	3	187	58	2.64	2900	82	31	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	59
组名: 3
	CDM5-2	5	11.5	69	0.22	2900	82	2	-15℃～+70℃	-15℃～+120℃	0.37	CDLA-12/WBF14	24
	CDM5-3	5	17.5	69	0.34	2900	82	3	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	26
	CDM5-4	5	24	69	0.47	2900	82	4	-15℃～+70℃	-15℃～+120℃	0.55	CDLA-12/WBF14	27
	CDM5-5	5	30	69	0.58	2900	82	5	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-12/WBF14	30
	CDM5-6	5	37	69	0.71	2900	82	6	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	32
	CDM5-7	5	42.5	69	0.83	2900	82	7	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	32
	CDM5-8	5	49	69	0.95	2900	82	8	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-12/WBF14	33
	CDM5-9	5	55	69	1.07	2900	82	9	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	38
	CDM5-10	5	62	69	1.21	2900	82	10	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	39
	CDM5-11	5	68	69	1.32	2900	82	11	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-12/WBF14	39
	CDM5-12	5	74.5	69	1.44	2900	82	12	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	42
	CDM5-13	5	80	69	1.56	2900	82	13	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	42
	CDM5-14	5	87	69	1.69	2900	82	14	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	43
	CDM5-15	5	93	69	1.81	2900	82	15	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	43
	CDM5-16	5	99	69	1.93	2900	82	16	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-12/WBF14	44
	CDM5-17	5	105	69	2.04	2900	82	17	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	50
	CDM5-18	5	111	69	2.16	2900	82	18	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	55
	CDM5-19	5	118	69	2.3	2900	82	19	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	51
	CDM5-20	5	124	69	2.41	2900	82	20	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	51
	CDM5-21	5	130	69	2.53	2900	82	21	-15℃～+70℃	-15℃～+120℃	3	CDLA-12/WBF14	57
	CDM5-22	5	136	69	2.63	2900	82	22	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	59
	CDM5-23	5	142	69	2.76	2900	82	23	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	65
	CDM5-24	5	149	69	2.9	2900	82	24	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	60
	CDM5-25	5	155	69	3.02	2900	82	25	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	66
	CDM5-26	5	161	69	3.13	2900	82	26	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	61
	CDM5-27	5	168	69	3.25	2900	82	27	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	62
	CDM5-28	5	174	69	3.39	2900	82	28	-15℃～+70℃	-15℃～+120℃	4	CDLA-12/WBF14	67
	CDM5-29	5	180	69	3.5	2900	82	29	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-12/WBF14	82
	CDM5-30	5	186	69	3.62	2900	82	30	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-12/WBF14	88
	CDM5-31	5	193	69	3.76	2900	82	31	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-12/WBF14	83
	CDM5-32	5	200	69	3.89	2900	82	32	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-12/WBF14	84
	CDM5-33	5	206	69	4.01	2900	82	33	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-12/WBF14	89
组名: 4
	CDM10-1	10	8	72	0.3	2900	100	1	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-16/WBF14	29
	CDM10-2	10	16.5	72	0.62	2900	100	2	-15℃～+70℃	-15℃～+120℃	0.75	CDLA-16/WBF14	30
	CDM10-3	10	25.5	72	0.97	2900	100	3	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-16/WBF14	33
	CDM10-4	10	34	72	1.29	2900	100	4	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-16/WBF14	39
	CDM10-5	10	43	72	1.63	2900	100	5	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-16/WBF14	43
	CDM10-6	10	52	72	1.97	2900	100	6	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-16/WBF14	44
	CDM10-7	10	62	72	2.35	2900	100	7	-15℃～+70℃	-15℃～+120℃	3	CDLA-16/WBF14	55
	CDM10-8	10	71	72	2.69	2900	100	8	-15℃～+70℃	-15℃～+120℃	3	CDLA-16/WBF14	56
	CDM10-9	10	80	72	3.03	2900	100	9	-15℃～+70℃	-15℃～+120℃	4	CDLA-16/WBF14	63
	CDM10-10	10	89	72	3.37	2900	100	10	-15℃～+70℃	-15℃～+120℃	4	CDLA-16/WBF14	64
	CDM10-11	10	98	72	3.71	2900	100	11	-15℃～+70℃	-15℃～+120℃	4	CDLA-16/WBF14	65
	CDM10-12	10	107	72	4.05	2900	100	12	-15℃～+70℃	-15℃～+120℃	4.5	CDLA-16/WBF14	66
	CDM10-13	10	116	72	4.39	2900	100	13	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	86
	CDM10-14	10	125	72	4.73	2900	100	14	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	87
	CDM10-15	10	134	72	5.07	2900	100	15	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	88
	CDM10-16	10	144	72	5.41	2900	100	16	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	97
	CDM10-17	10	153	72	5.79	2900	100	17	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	98
	CDM10-18	10	163	72	6.17	2900	100	18	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	99
	CDM10-19	10	172	72	6.51	2900	100	19	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	100
	CDM10-20	10	181	72	6.85	2900	100	20	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	101
	CDM10-21	10	191	72	7.23	2900	100	21	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	102
	CDM10-22	10	201	72	7.61	2900	100	22	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	168
组名: 5
	CDM15-1	15	11	71	0.63	2900	105.2	1	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-16/WBF14	33
	CDM15-2	15	22.5	71	1.3	2900	105.2	2	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-16/WBF14	41
	CDM15-3	15	34.5	71	1.99	2900	105.2	3	-15℃～+70℃	-15℃～+120℃	3	CDLA-16/WBF14	52
	CDM15-4	15	47	71	2.65	2900	105.2	4	-15℃～+70℃	-15℃～+120℃	4	CDLA-16/WBF14	59
	CDM15-5	15	58	71	3.31	2900	105.2	5	-15℃～+70℃	-15℃～+120℃	4	CDLA-16/WBF14	61
	CDM15-6	15	69	71	3.97	2900	105.2	6	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	83
	CDM15-7	15	81	71	4.66	2900	105.2	7	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	84
	CDM15-8	15	93	71	5.35	2900	105.2	8	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	91
	CDM15-9	15	106	71	6.04	2900	105.2	9	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	92
	CDM15-10	15	118	71	6.74	2900	105.2	10	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	150
	CDM15-11	15	130	71	7.43	2900	105.2	11	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	151
	CDM15-12	15	142	71	8.12	2900	105.2	12	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	153
	CDM15-13	15	152	71	8.81	2900	105.2	13	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	154
	CDM15-14	15	165	71	9.5	2900	105.2	14	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	156
	CDM15-15	15	178	71	10.19	2900	105.2	15	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	172
	CDM15-16	15	189	71	10.88	2900	105.2	16	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	173
	CDM15-17	15	201	71	11.57	2900	105.2	17	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	175
	CDM15-18	15	213	71	12.26	2900	105.2	18	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	184
组名: 6
	CDM20-1	20	10.5	72	0.79	2900	105.5	1	-15℃～+70℃	-15℃～+120℃	1.1	CDLA-16/WBF14	33
	CDM20-2	20	23	72	1.67	2900	105.5	2	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-16/WBF14	41
	CDM20-3	20	35	72	2.61	2900	105.5	3	-15℃～+70℃	-15℃～+120℃	4	CDLA-16/WBF14	59
	CDM20-4	20	47	72	3.48	2900	105.5	4	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	81
	CDM20-5	20	58	72	4.39	2900	105.5	5	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-16/WBF14	83
	CDM20-6	20	70	72	5.3	2900	105.5	6	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	92
	CDM20-7	20	82	72	6.21	2900	105.5	7	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-16/WBF14	93
	CDM20-8	20	95	72	7.19	2900	105.5	8	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	160
	CDM20-9	20	107	72	8.1	2900	105.5	9	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	161
	CDM20-10	20	119	72	9.01	2900	105.5	10	-15℃～+70℃	-15℃～+120℃	11	CDLA-16/WBF14	163
	CDM20-11	20	131	72	9.92	2900	105.5	11	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	180
	CDM20-12	20	143	72	10.82	2900	105.5	12	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	181
	CDM20-13	20	155	72	11.73	2900	105.5	13	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	182
	CDM20-14	20	168	72	12.72	2900	105.5	14	-15℃～+70℃	-15℃～+120℃	15	CDLA-16/WBF14	184
	CDM20-15	20	180	72	13.62	2900	105.5	15	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-16/WBF14	202
	CDM20-16	20	193	72	14.61	2900	105.5	16	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-16/WBF14	203
	CDM20-17	20	205	72	15.52	2900	105.5	17	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-16/WBF14	205
组名: 7
	CDM32-1-1	32	9	68.2	1.15	2900	118.2	1	-15℃～+70℃	-15℃～+120℃	1.5	CDLA-22/WBF16	64
	CDM32-1	32	13	68.2	1.66	2900	118.2	1	-15℃～+70℃	-15℃～+120℃	2.2	CDLA-22/WBF16	68
	CDM32-2-2	32	20	68.2	2.56	2900	118.2	2	-15℃～+70℃	-15℃～+120℃	3	CDLA-22/WBF16	77
	CDM32-2	32	27	68.2	3.45	2900	118.2	2	-15℃～+70℃	-15℃～+120℃	4	CDLA-22/WBF16	85
	CDM32-3-2	32	33	68.2	4.22	2900	118.2	3	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-22/WBF16	100
	CDM32-3	32	40	68.2	5.11	2900	118.2	3	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-22/WBF16	100
	CDM32-4-2	32	46	68.2	5.88	2900	118.2	4	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-22/WBF16	109
	CDM32-4	32	53	68.2	6.78	2900	118.2	4	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-22/WBF16	109
	CDM32-5-2	32	60	68.2	7.67	2900	118.2	5	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	181
	CDM32-5	32	67	68.2	8.57	2900	118.2	5	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	181
	CDM32-6-2	32	74	68.2	9.46	2900	118.2	6	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	185
	CDM32-6	32	81	68.2	10.36	2900	118.2	6	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	185
	CDM32-7-2	32	88	68.2	11.25	2900	118.2	7	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	199
	CDM32-7	32	95	68.2	12.15	2900	118.2	7	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	199
	CDM32-8-2	32	102	68.2	13	2900	118.2	8	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	203
	CDM32-8	32	109	68.2	14	2900	118.2	8	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	203
	CDM32-9-2	32	117	68.2	15	2900	118.2	9	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	222
	CDM32-9	32	124	68.2	15.85	2900	118.2	9	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	222
	CDM32-10-2	32	131	68.2	16.75	2900	118.2	10	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	227
	CDM32-10	32	138	68.2	17.64	2900	118.2	10	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	227
	CDM32-11-2	32	146	68.2	18.67	2900	118.2	11	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	272
	CDM32-11	32	153	68.2	19.56	2900	118.2	11	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	272
	CDM32-12-2	32	160	68.2	20.46	2900	118.2	12	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	276
	CDM32-12	32	167	68.2	21.35	2900	118.2	12	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	276
	CDM32-13-2	32	174	68.2	22.25	2900	118.2	13	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	337
	CDM32-13	32	181	68.2	23.14	2900	118.2	13	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	337
	CDM32-14-2	32	189	68.2	24.17	2900	118.2	14	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	341
	CDM32-14	32	196	68.2	25	2900	118.2	14	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	341
	CDM32-15-2	32	203	68.2	26	2900	118.2	15	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	345
	CDM32-15	32	210	68.2	26.85	2900	118.2	15	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	345
	CDM32-16-2	32	218	68.2	27.87	2900	118.2	16	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	350
	CDM32-16	32	225	68.2	28.77	2900	118.2	16	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	350
组名: 8
	CDM42-1-1	42	16	69.8	2.62	2900	136	1	-15℃～+70℃	-15℃～+120℃	3	CDLA-22/WBF16	83
	CDM42-1	42	20	69.8	3.28	2900	136	1	-15℃～+70℃	-15℃～+120℃	4	CDLA-22/WBF16	90
	CDM42-2-2	42	32	69.8	5.25	2900	136	2	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-22/WBF16	105
	CDM42-2	42	41	69.8	6.72	2900	136	2	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-22/WBF16	110
	CDM42-3-2	42	52	69.8	8.53	2900	136	3	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	183
	CDM42-3	42	61	69.8	10	2900	136	3	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	183
	CDM42-4-2	42	73	69.8	12	2900	136	4	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	197
	CDM42-4	42	81	69.8	13.28	2900	136	4	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	197
	CDM42-5-2	42	93	69.8	15.25	2900	136	5	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	221
	CDM42-5	42	101	69.8	16.56	2900	136	5	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	221
	CDM42-6-2	42	113	69.8	18.53	2900	136	6	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	261
	CDM42-6	42	122	69.8	20	2900	136	6	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	261
	CDM42-7-2	42	134	69.8	22	2900	136	7	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	320
	CDM42-7	42	142	69.8	23.28	2900	136	7	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	320
	CDM42-8-2	42	154	69.8	25.25	2900	136	8	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	324
	CDM42-8	42	162	69.8	26.56	2900	136	8	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	324
	CDM42-9-2	42	174	69.8	28.53	2900	136	9	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	328
	CDM42-9	42	183	69.8	30	2900	136	9	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	352
	CDM42-10-2	42	194	69.8	31.81	2900	136	10	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	355
	CDM42-10	42	203	69.8	33.29	2900	136	10	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	355
	CDM42-11-2	42	217	69.8	35.58	2900	136	11	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	426
	CDM42-11	42	225	69.8	36.89	2900	136	11	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	426
	CDM42-12-2	42	238	69.8	39	2900	136	12	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	432
	CDM42-12	42	247	69.8	40.5	2900	136	12	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	432
	CDM42-13-2	42	259	69.8	42.47	2900	136	13	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	438
组名: 9
	CDM65-1-1	65	13	72.3	3.18	2900	142	1	-15℃～+70℃	-15℃～+120℃	4	CDLA-22/WBF16	93
	CDM65-1	65	20	72.3	4.9	2900	142	1	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-22/WBF16	105
	CDM65-2-2	65	26	72.3	6.37	2900	142	2	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-22/WBF16	110
	CDM65-2-1	65	33	72.3	8.08	2900	142	2	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	182
	CDM65-2	65	40	72.3	9.8	2900	142	2	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	182
	CDM65-3-2	65	46	72.3	11.27	2900	142	3	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	196
	CDM65-3-1	65	53	72.3	13	2900	142	3	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	197
	CDM65-3	65	60	72.3	14.7	2900	142	3	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	221
	CDM65-4-2	65	66	72.3	16.17	2900	142	4	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	225
	CDM65-4-1	65	73	72.3	17.88	2900	142	4	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	258
	CDM65-4	65	80	72.3	19.6	2900	142	4	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	258
	CDM65-5-2	65	88	72.3	21.56	2900	142	5	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	319
	CDM65-5-1	65	95	72.3	23.27	2900	142	5	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	319
	CDM65-5	65	102	72.3	25	2900	142	5	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	320
	CDM65-6-2	65	110	72.3	27	2900	142	6	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	325
	CDM65-6-1	65	117	72.3	28.66	2900	142	6	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	349
	CDM65-6	65	124	72.3	30.38	2900	142	6	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	349
	CDM65-7-2	65	132	72.3	32.34	2900	142	7	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	353
	CDM65-7-1	65	139	72.3	34	2900	142	7	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	353
	CDM65-7	65	146	72.3	35.77	2900	142	7	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	420
	CDM65-8-2	65	154	72.3	37.73	2900	142	8	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	424
	CDM65-8-1	65	161	72.3	39.44	2900	142	8	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	424
组名: 10
	CDM85-1-1	85	14	73.9	4.39	2900	145.3	1	-15℃～+70℃	-15℃～+120℃	5.5	CDLA-22/WBF16	105
	CDM85-1	85	20	73.9	6.27	2900	146	1	-15℃～+70℃	-15℃～+120℃	7.5	CDLA-22/WBF16	110
	CDM85-2-2	85	30	73.9	9.4	2900	145.3	2	-15℃～+70℃	-15℃～+120℃	11	CDLA-22/WBF16	181
	CDM85-2	85	41	73.9	12.85	2900	146	2	-15℃～+70℃	-15℃～+120℃	15	CDLA-22/WBF16	192
	CDM85-3-2	85	52	73.9	16.3	2900	146	3	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-22/WBF16	215
	CDM85-3	85	64	73.9	20	2900	146	3	-15℃～+70℃	-15℃～+120℃	22	CDLA-22/WBF16	252
	CDM85-4-2	85	75	73.9	23.51	2900	146	4	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	312
	CDM85-4	85	86	73.9	27	2900	146	4	-15℃～+70℃	-15℃～+120℃	30	CDLA-22/WBF16	312
	CDM85-5-2	85	98	73.9	30.72	2900	146	5	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	336
	CDM85-5	85	110	73.9	34.48	2900	146	5	-15℃～+70℃	-15℃～+120℃	37	CDLA-22/WBF16	336
	CDM85-6-2	85	122	73.9	38.24	2900	146	6	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	407
	CDM85-6	85	134	73.9	42	2900	146	6	-15℃～+70℃	-15℃～+120℃	45	CDLA-22/WBF16	407
组名: 11
	CDM120-1	120	18.5	74.7	8.1	2950	143.7	1	-15℃～+70℃	-15℃～+120℃	11	CDLA-32/WBF16	230
	CDM120-2-2	120	28.5	74.7	12.48	2950	132	2	-15℃～+70℃	-15℃～+120℃	15	CDLA-32/WBF16	245
	CDM120-2-1	120	34.5	74.7	15	2950	143.7	2	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-32/WBF16	250
	CDM120-2	120	40	74.7	17.51	2950	143.7	2	-15℃～+70℃	-15℃～+120℃	22	CDLA-32/WBF16	285
	CDM120-3-2	120	49	74.7	21.45	2950	143.7	3	-15℃～+70℃	-15℃～+120℃	30	CDLA-32/WBF16	360
	CDM120-3-1	120	55.5	74.7	24.3	2950	143.7	3	-15℃～+70℃	-15℃～+120℃	30	CDLA-32/WBF16	360
	CDM120-3	120	61	74.7	26.7	2950	143.7	3	-15℃～+70℃	-15℃～+120℃	30	CDLA-32/WBF16	360
	CDM120-4-2	120	69	74.7	30.2	2950	143.7	4	-15℃～+70℃	-15℃～+120℃	37	CDLA-32/WBF16	400
	CDM120-4-1	120	76	74.7	33.27	2950	143.7	4	-15℃～+70℃	-15℃～+120℃	37	CDLA-32/WBF16	400
	CDM120-4	120	81	74.7	35.46	2950	143.7	4	-15℃～+70℃	-15℃～+120℃	45	CDLA-32/WBF16	460
	CDM120-5-2	120	90	74.7	39.4	2950	143.7	5	-15℃～+70℃	-15℃～+120℃	45	CDLA-32/WBF16	470
	CDM120-5-1	120	97	74.7	42.46	2950	143.7	5	-15℃～+70℃	-15℃～+120℃	45	CDLA-32/WBF16	470
	CDM120-5	120	101.5	74.7	44.43	2950	143.7	5	-15℃～+70℃	-15℃～+120℃	55	CDLA-32/WBF16	575
	CDM120-6-2	120	110	74.7	48.15	2950	143.7	6	-15℃～+70℃	-15℃～+120℃	55	CDLA-32/WBF16	585
	CDM120-6-1	120	118	74.7	51.65	2950	143.7	6	-15℃～+70℃	-15℃～+120℃	55	CDLA-32/WBF16	585
	CDM120-6	120	123	74.7	53.84	2950	143.7	6	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	705
	CDM120-7-2	120	130	74.7	57	2950	143.7	7	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	715
	CDM120-7-1	120	137.5	74.7	60.19	2950	143.7	7	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	715
	CDM120-7	120	145	74.7	63.47	2950	143.7	7	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	715
组名: 12
	CDM150-1-1	150	12.5	75.8	6.74	2950	139	1	-15℃～+70℃	-15℃～+120℃	11	CDLA-32/WBF16	230
	CDM150-1	150	18.5	75.8	9.98	2950	151.5	1	-15℃～+70℃	-15℃～+120℃	15	CDLA-32/WBF16	235
	CDM150-2-2	150	27.5	75.8	14.83	2950	139	2	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-32/WBF16	250
	CDM150-2-1	150	35	75.8	18.87	2950	151.5	2	-15℃～+70℃	-15℃～+120℃	22	CDLA-32/WBF16	295
	CDM150-2	150	40	75.8	21.57	2950	151.5	2	-15℃～+70℃	-15℃～+120℃	30	CDLA-32/WBF16	350
	CDM150-3-2	150	49	75.8	26.42	2950	151.5	3	-15℃～+70℃	-15℃～+120℃	30	CDLA-32/WBF16	360
	CDM150-3-1	150	56	75.8	30.2	2950	151.5	3	-15℃～+70℃	-15℃～+120℃	37	CDLA-32/WBF16	360
	CDM150-3	150	63	75.8	34	2950	151.5	3	-15℃～+70℃	-15℃～+120℃	37	CDLA-32/WBF16	385
	CDM150-4-2	150	70.5	75.8	38	2950	151.5	4	-15℃～+70℃	-15℃～+120℃	45	CDLA-32/WBF16	460
	CDM150-4-1	150	77	75.8	41.52	2950	151.5	4	-15℃～+70℃	-15℃～+120℃	45	CDLA-32/WBF16	460
	CDM150-4	150	84	75.8	45.3	2950	151.5	4	-15℃～+70℃	-15℃～+120℃	55	CDLA-32/WBF16	560
	CDM150-5-2	150	92	75.8	49.61	2950	151.5	5	-15℃～+70℃	-15℃～+120℃	55	CDLA-32/WBF16	570
	CDM150-5-1	150	99	75.8	53.39	2950	151.5	5	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	690
	CDM150-5	150	106.5	75.8	57.43	2950	151.5	5	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	690
	CDM150-6-2	150	112	75.8	60.4	2950	151.5	6	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	700
	CDM150-6-1	150	120.5	75.8	65	2950	151.5	6	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	700
	CDM150-6	150	130	75.8	70	2950	151.5	6	-15℃～+70℃	-15℃～+120℃	75	CDLA-32/WBF16	700
组名: 13
	CDM200-1-B	200	20	77.9	13.49	2950	167.568	1	-15℃～+70℃	-15℃～+120℃	18.5	CDLA-36/WBF16	311
	CDM200-1-A	200	24	77.9	16.19	2950	173.851	1	-15℃～+70℃	-15℃～+120℃	22	CDLA-36/WBF16	347
	CDM200-1	200	34	77.9	23	2950	188.567	1	-15℃～+70℃	-15℃～+120℃	30	CDLA-36/WBF16	403
	CDM200-2-2B	200	41	77.9	27.65	2950	167.568	2	-15℃～+70℃	-15℃～+120℃	37	CDLA-36/WBF16	447
	CDM200-2-2A	200	49	77.9	33	2950	173.851	2	-15℃～+70℃	-15℃～+120℃	45	CDLA-36/WBF16	504
	CDM200-2-A	200	59	77.9	39.8	2950	188.567	2	-15℃～+70℃	-15℃～+120℃	55	CDLA-36/WBF16	595
	CDM200-2	200	69	77.9	46.54	2950	188.567	2	-15℃～+70℃	-15℃～+120℃	55	CDLA-36/WBF16	595
	CDM200-3-2B	200	75	77.9	50.59	2950	188.567	3	-15℃～+70℃	-15℃～+120℃	75	CDLA-36/WBF16	748
	CDM200-3-A-B	200	79	77.9	53.29	2950	188.567	3	-15℃～+70℃	-15℃～+120℃	75	CDLA-36/WBF16	748
	CDM200-3-2A	200	84	77.9	56.66	2950	188.567	3	-15℃～+70℃	-15℃～+120℃	75	CDLA-36/WBF16	748
	CDM200-3-B	200	89	77.9	60	2950	188.567	3	-15℃～+70℃	-15℃～+120℃	75	CDLA-36/WBF16	748
	CDM200-3-A	200	93	77.9	62.73	2950	188.567	3	-15℃～+70℃	-15℃～+120℃	75	CDLA-36/WBF16	748
	CDM200-3	200	103	77.9	69.47	2950	188.567	3	-15℃～+70℃	-15℃～+120℃	90	CDLA-36/WBF16	817
	CDM200-4-2B	200	110	77.9	74.2	2950	188.567	4	-15℃～+70℃	-15℃～+120℃	90	CDLA-36/WBF16	830
	CDM200-4-2A	200	118	77.9	79.59	2950	188.567	4	-15℃～+70℃	-15℃～+120℃	110	CDLA-36/WBF16	1180
	CDM200-4-A	200	128	77.9	86.34	2950	188.567	4	-15℃～+70℃	-15℃～+120℃	110	CDLA-36/WBF16	1180
	CDM200-4	200	138	77.9	93	2950	188.567	4	-15℃～+70℃	-15℃～+120℃	110	CDLA-36/WBF16	1180
